SKU:
PESD5V5C1ULYL
-
Short Description:
Extremely low clamping unidirectional ESD protection diode
-
Description:

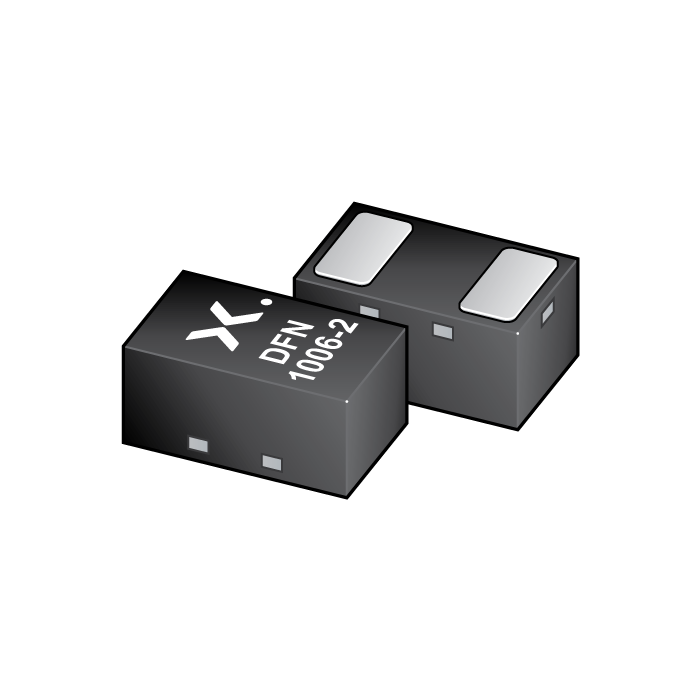

Ultra low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family. This device is housed in a small leadless DFN1006-2 (SOD882-2) Surface-Mounted Device (SMD) plastic package. The combination of ultra low capacitance, high ESD maximum rating and ultra small package makes the device ideal for high-speed data lines protection.
- Datasheet:
Features
Unidirectional ESD protection of one line
IEC 61000-4-5 (surge): IPP = 8.7 A peak pulse (average measured)
Very low diode capacitance: Cd = 0.6 pF typical
Extremely low clamping voltage to protect sensitive I/Os
ESD protection up to ±15 kV according to IEC 61000-4-2
Applications
Cellular handsets and accessories
Portable electronics
Communication systems
Computers and peripherals
USB2.0, USB3.0 data lines at 5 Gbps
