PIMC32PA

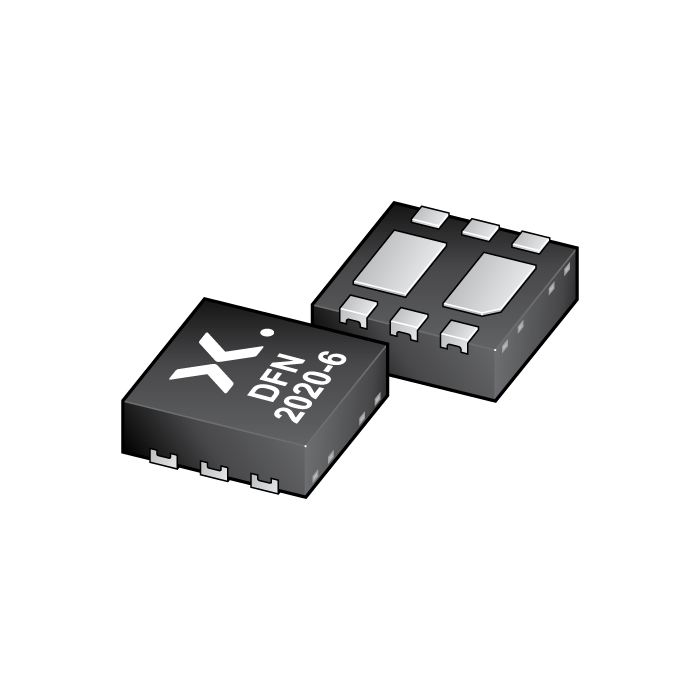

main product photo

The image is for reference only

Please refer to the product specifications

PIMC32PA
  • SKU:
    PIMC32PAX
  • Short Description:
      50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1 = 2.2 kΩ, R2 = 10 kΩ
  • Description:


    NPN/PNP Resistor-Equipped double Transistor (RET) in a medium power SOT1118 (DFN2020-6) leadless Surface-Mounted Device (SMD) plastic package.

    NPN/NPN complement: PIMN32PA

    PNP/PNP complement: PIMP32PA

  • Datasheet:
    Download the Datasheet
Stock: 141000
Qty:
Price: $0.0962
Total: $0.0962
Price
Qty Price Total price
1 $0.0962 $0.0962
500 $0.0875 $43.7500
1000 $0.0833 $83.3000
3000 $0.0794 $238.2000

Features

  • 500 mA output current capability

  • Built-in resistors

  • Simplifies circuit design

  • Reduces component count

  • Reduces pick and place costs

Applications

  • Digital applications

  • Cost-saving alternative to BC807 / BC817 series in digital applications

  • Control of IC inputs

  • Switching loads

Datasheet
Download the Datasheet
