PIMN31PAS

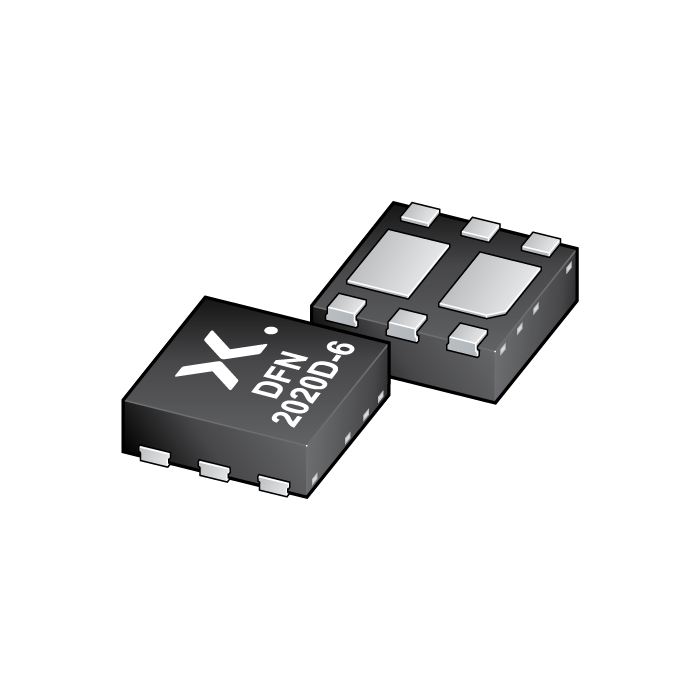

main product photo

The image is for reference only

Please refer to the product specifications

PIMN31PAS

SKU:
PIMN31PAS-QX
Short Description:
Q - 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 1 kΩ, R2 = 10 kΩ
Description:

NPN/NPN Resistor-Equipped double Transistor (RET) in a medium power SOT1118D (DFN2020D-6) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks (SWF).
NPN/PNP complement: PIMC31PAS-Q
PNP/PNP complement: PIMP31PAS-Q
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.1018

Total: $0.1018

Price

Qty Price Total price: 1 $0.1018 $0.1018; 500 $0.0926 $46.3000; 1000 $0.0881 $88.1000; 3000 $0.084 $252.0000

Features

500 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

Digital applications
Cost-saving alternative to BC817 series in digital applications
Control of IC inputs
Switching loads

Datasheet

Download the Datasheet
