PIMP31PAS

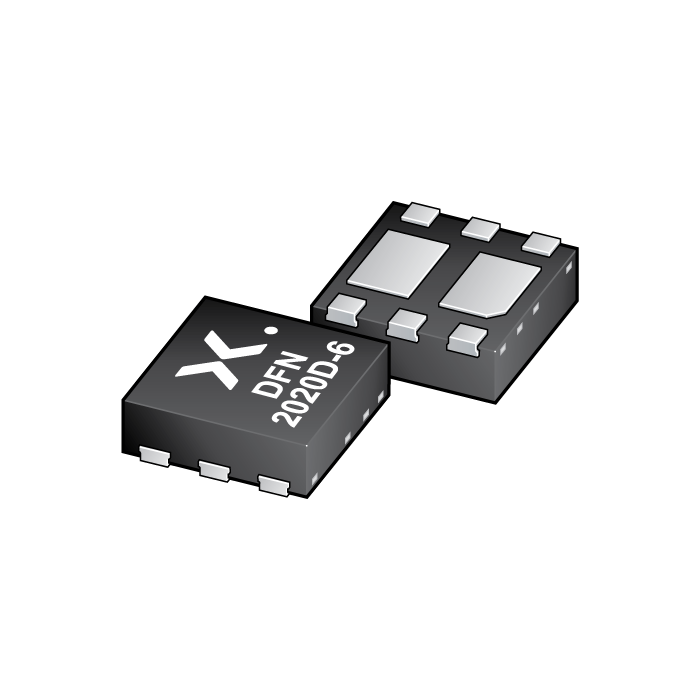

The image is for reference only
Please refer to the product specifications
PIMP31PAS
-
SKU:
PIMP31PAS-QX
-
Short Description:
Q - 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1 = 1 kΩ, R2 = 10 kΩ
-
Description:
PNP/PNP Resistor-Equipped double Transistor (RET) in a medium power SOT1118D (DFN2020D-6) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks (SWF).
NPN/NPN complement: PIMN31PAS-Q
NPN/PNP complement: PIMC31PAS-Q
- Datasheet:
Stock: 99999999
Features
500 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Digital applications
Cost-saving alternative to BC807 series in digital applications
Control of IC inputs
Switching loads
