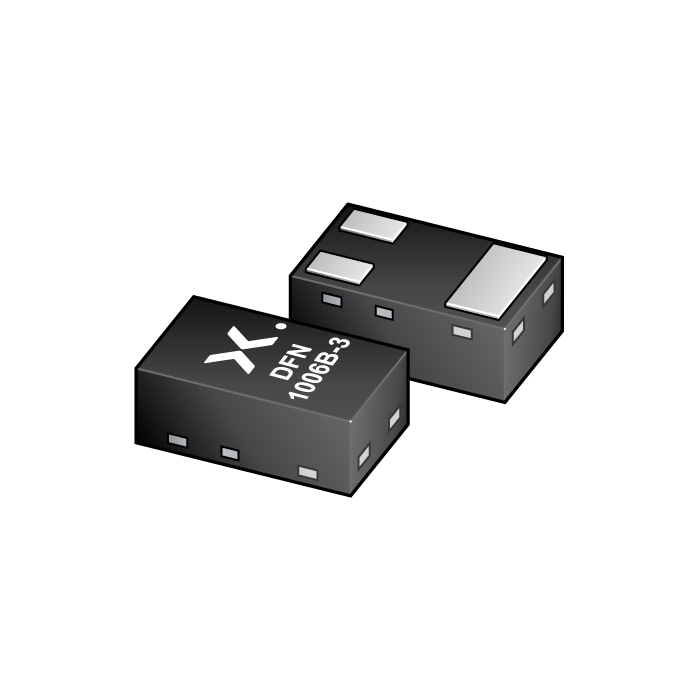

main product photo

The image is for reference only

Please refer to the product specifications

PMBT3904MB

SKU:
PMBT3904MB,315
Date Code:
2527+
Short Description:
40 V, 200 mA NPN switching transistor
Description:

NPN single switching transistor in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package.
PNP complement: PMBT3906MB.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 1180000

Qty:

Price: $0.03

Total: $0.03

Price

Qty Price Total price: 1 $0.03 $0.03; 500 $0.0273 $13.6500; 1000 $0.026 $26.0000; 3000 $0.0247 $74.1000

Features

Single general-purpose switching transistor
Ultra small SMD plastic package
Board-space reduction
Low package height of 0.37 mm
AEC-Q101 qualified

Applications

General-purpose switching and amplification
Mobile applications

Datasheet

Download the Datasheet
