PMCM6501VPE

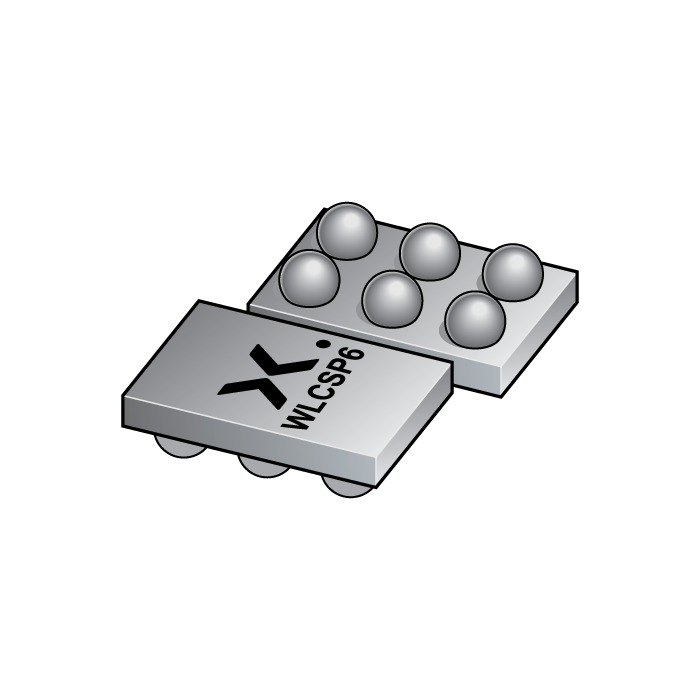

main product photo

The image is for reference only

Please refer to the product specifications

PMCM6501VPE
  • SKU:
    PMCM6501VPEZ
  • Short Description:
      12 V, P-channel Trench MOSFET
  • Description:


    P-channel enhancement mode Field-Effect Transistor (FET) in a 6 bumps Wafer Level Chip-Size Package (WLCSP) using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 594000
Qty:
Price: $0.2011
Total: $0.2011
Price
Qty Price Total price
1 $0.2011 $0.2011
500 $0.1828 $91.4000
1000 $0.1741 $174.1000
3000 $0.1658 $497.4000

Features

  • Low threshold voltage

  • Ultra small package: 0.98 × 1.48 × 0.35 mm

  • Trench MOSFET technology

  • ElectroStatic Discharge (ESD) protection > 2 kV HBM

Applications

  • Battery switch

  • High-speed line driver

  • Low-side loadswitch

  • Switching circuits

Datasheet
Download the Datasheet
