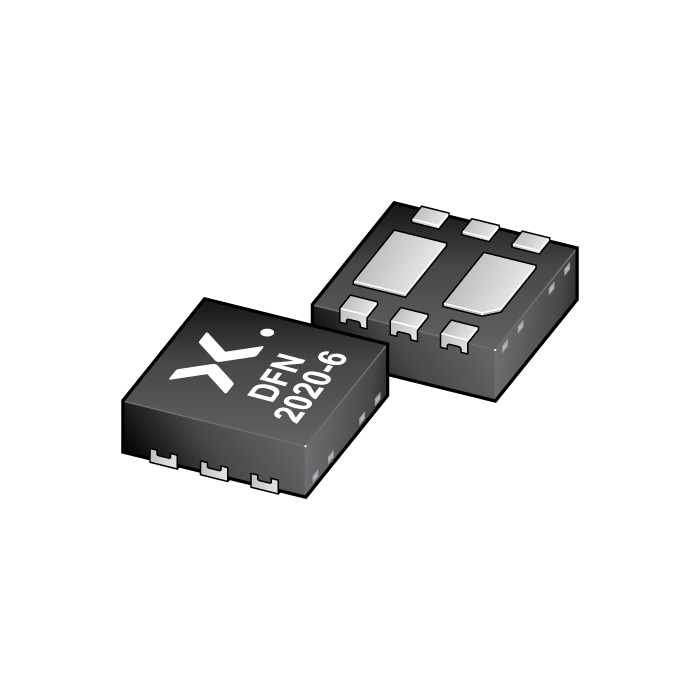

main product photo

The image is for reference only

Please refer to the product specifications

20 V, dual N

SKU:
PMDPB30XNZ
Short Description:
channel Trench MOSFET
Description:

Dual N-channel enhancement mode Field-Effect Transistor (FET) in a small and leadless ultra thin DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 15000

Qty:

Price: $0.119

Total: $0.119

Price

Qty Price Total price: 1 $0.119 $0.119; 500 $0.1081 $54.0500; 1000 $0.103 $103.0000; 3000 $0.0981 $294.3000

Features

Very fast switching
Trench MOSFET technology
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent thermal conduction

Applications

Relay driver
LED backlight driver
Low-side loadswitch
Switching circuits

Datasheet

Download the Datasheet
