PMEG1020EH

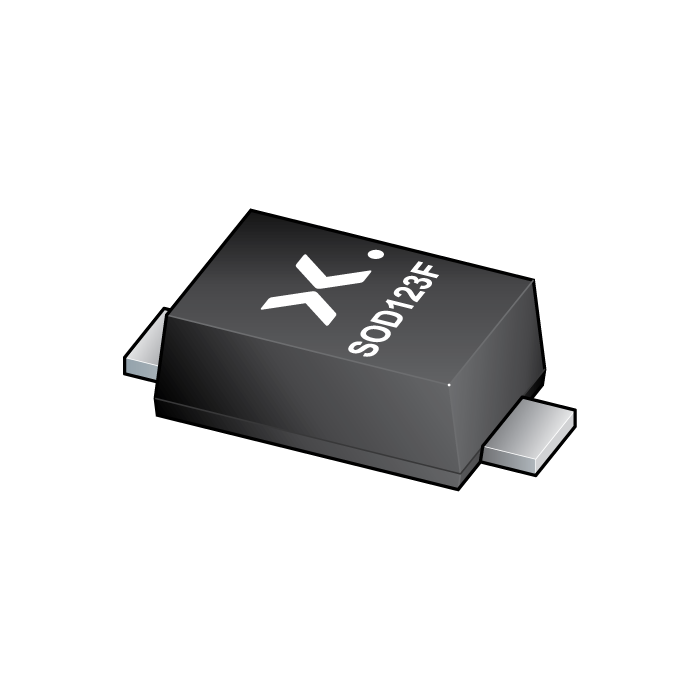

main product photo

The image is for reference only

Please refer to the product specifications

PMEG1020EH
  • SKU:
    PMEG1020EH,115
  • Short Description:
      10 V, 2 A ultra low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 387000
Qty:
Price: $0.0576
Total: $0.0576
Price
Qty Price Total price
1 $0.0576 $0.0576
500 $0.0524 $26.2000
1000 $0.0499 $49.9000
3000 $0.0475 $142.5000

Features

  • Forward current: ≤ 2 A

  • Reverse voltage: ≤ 10 V

  • Ultra low forward voltage

  • Small and flat lead SMD plastic packages

  • AEC-Q101 qualified

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Inverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
