PMEG2005EGW

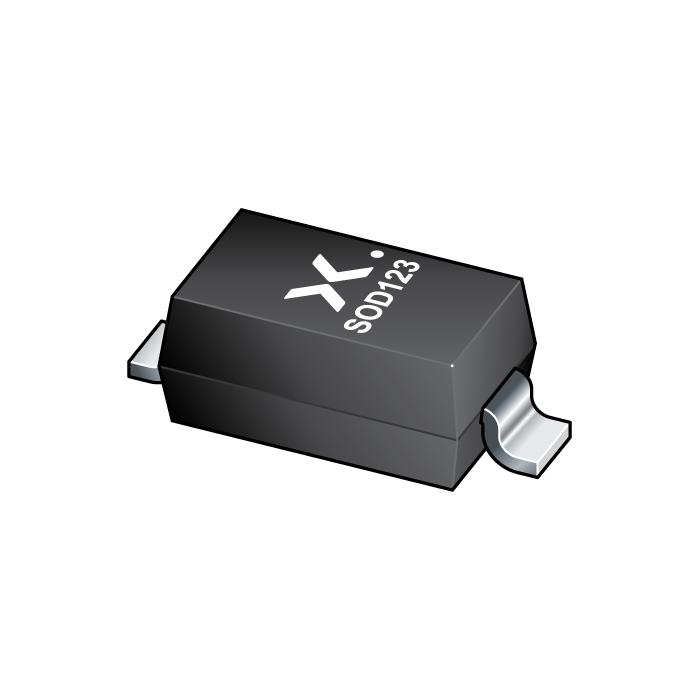

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2005EGW
  • SKU:
    PMEG2005EGWX
  • Short Description:
      20 V, 0.5 A low VF MEGA Schottky barrier rectifier
  • Description:


    Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 192000
Qty:
Price: $0.0265
Total: $0.0265
Price
Qty Price Total price
1 $0.0265 $0.0265
500 $0.0241 $12.0500
1000 $0.0229 $22.9000
3000 $0.0219 $65.7000

Features

  • Forward current: IF ≤ 0.5 A

  • Reverse voltage: VR ≤ 20 V

  • Low forward voltage typ. VF = 355 mV

  • Low reverse current typ. IR = 40 µA

  • Small SMD plastic package

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
