PMEG2005EH

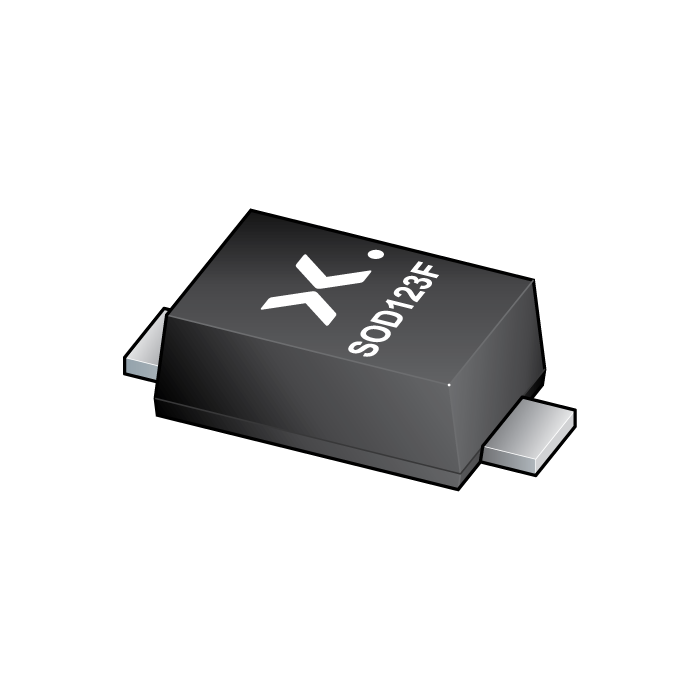

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2005EH
  • SKU:
    PMEG2005EH-QX
  • Short Description:
      Q - 20 V, 0.5 A very low VF MEGA Schottky barrier rectifier
  • Description:


    Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 51000
Qty:
Price: $0.0354
Total: $0.0354
Price
Qty Price Total price
1 $0.0354 $0.0354
500 $0.0322 $16.1000
1000 $0.0307 $30.7000
3000 $0.0292 $87.6000

Features

  • Very low forward voltage

  • Flat lead SMD package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
