PMEG2010AEH

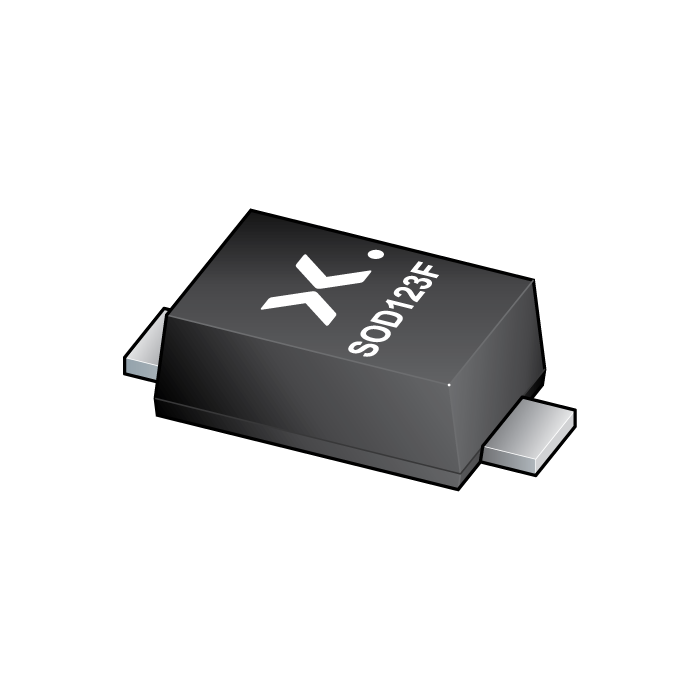

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2010AEH

SKU:
PMEG2010AEH,115
Short Description:
20 V, 1 A very low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 603000

Qty:

Price: $0.0508

Total: $0.0508

Price

Qty Price Total price: 1 $0.0508 $0.0508; 500 $0.0462 $23.1000; 1000 $0.044 $44.0000; 3000 $0.0419 $125.7000

Features

Forward current: I_F ≤ 1 A
Reverse voltage: V_R ≤ 20 V
Very low forward voltage
Small SMD plastic packages
AEC-Q101 qualified

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
