PMEG2010AEH

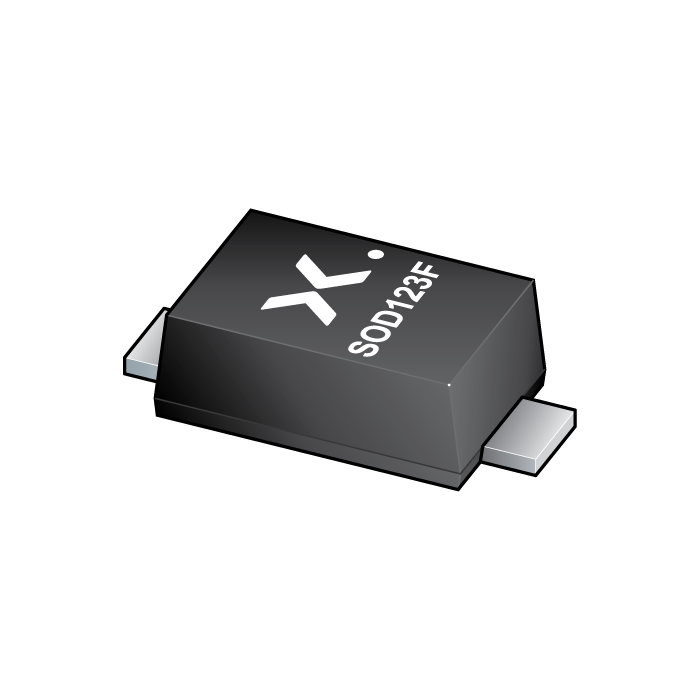

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2010AEH
  • SKU:
    PMEG2010AEH-QX
  • Short Description:
      Q - 20 V, 1 A very low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small SOD123F Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 750000
Qty:
Price: $0.0534
Total: $0.0534
Price
Qty Price Total price
1 $0.0534 $0.0534
500 $0.0486 $24.3000
1000 $0.0462 $46.2000
3000 $0.044 $132.0000

Features

  • Forward current: IF ≤ 1 A

  • Reverse voltage: VR ≤ 20 V

  • Very low forward voltage

  • Small SMD plastic packages

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
