PMEG2010BELD

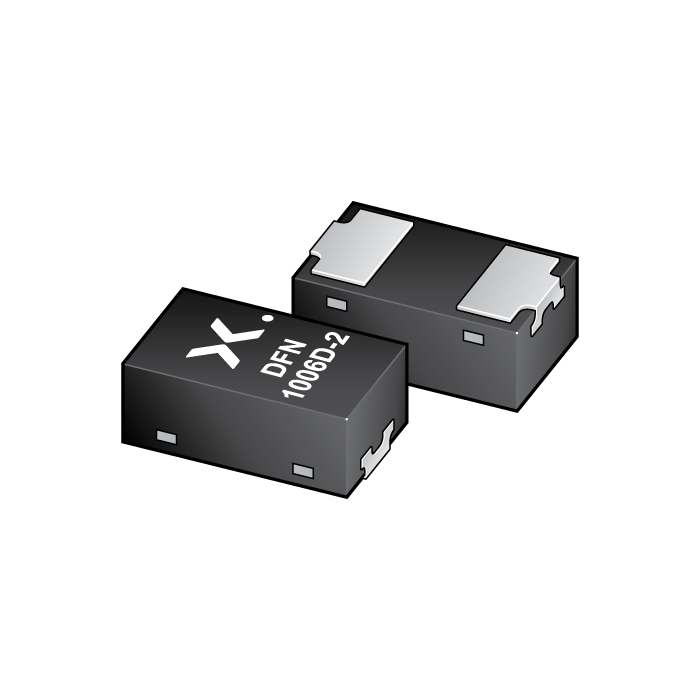

The image is for reference only
Please refer to the product specifications
PMEG2010BELD
-
SKU:
PMEG2010BELD,315
-
Date Code:
2346+
-
Short Description:
20 V, 1 A low VF Schottky barrier rectifier
-
Description:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Stock: 130000
Features
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 20 V
Low forward voltage VF ≤ 490 mV
Ultra small and leadless SMD plastic package
Solderable side pads
Package height typ. 0.37 mm
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Ultra high-speed switching
LED backlight for mobile application
