PMEG2010EH

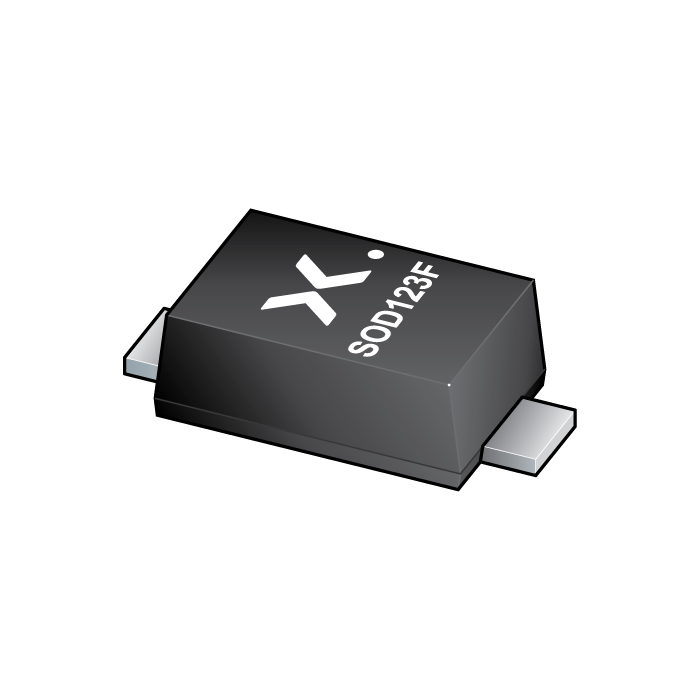

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2010EH
  • SKU:
    PMEG2010EH-QX
  • Short Description:
      Q - 20 V, 1 A very low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in small SOD123F Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 267000
Qty:
Price: $0.0417
Total: $0.0417
Price
Qty Price Total price
1 $0.0417 $0.0417
500 $0.0379 $18.9500
1000 $0.0361 $36.1000
3000 $0.0344 $103.2000

Features

  • Forward current: IF ≤ 1 A

  • Reverse voltage: VR ≤ 20 V

  • Very low forward voltage

  • Small SMD plastic package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
