PMEG2020CPAS

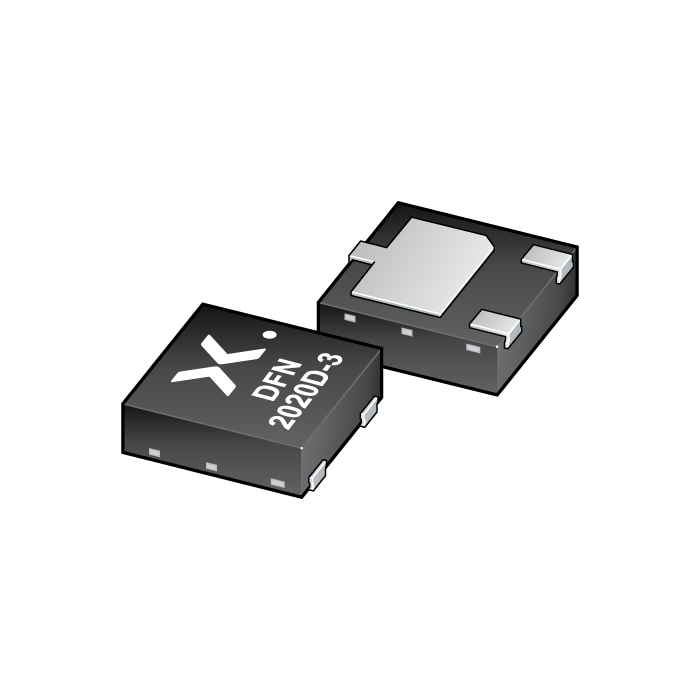

The image is for reference only
Please refer to the product specifications
PMEG2020CPAS
-
SKU:
PMEG2020CPASX
-
Date Code:
2517+
-
Short Description:
20 V, 2 A low VF dual Schottky barrier rectifier
-
Description:
- Datasheet:
Stock: 99999999
Features
Average forward current IF(AV) ≤ 2 A
Reverse voltage VR ≤ 20 V
Low forward voltage VF ≤ 420 mV
Low reverse current
Reduced Printed-Circuit-Board (PCB) area requirements
Exposed heat sink (cathode pad) for excellent thermal and electrical conductivity
Leadless small SMD plastic package with visible and solderable side pads
Suitable for Automatic Optical Inspection (AOI) of solder joints
AEC-Q101 qualified
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch Mode Power Supply (SMPS)
Free-wheeling application
Reverse polarity protection
Low power consumption application
Battery chargers for mobile equipment
LED backlight for mobile application
Datasheet
