PMEG2020EH

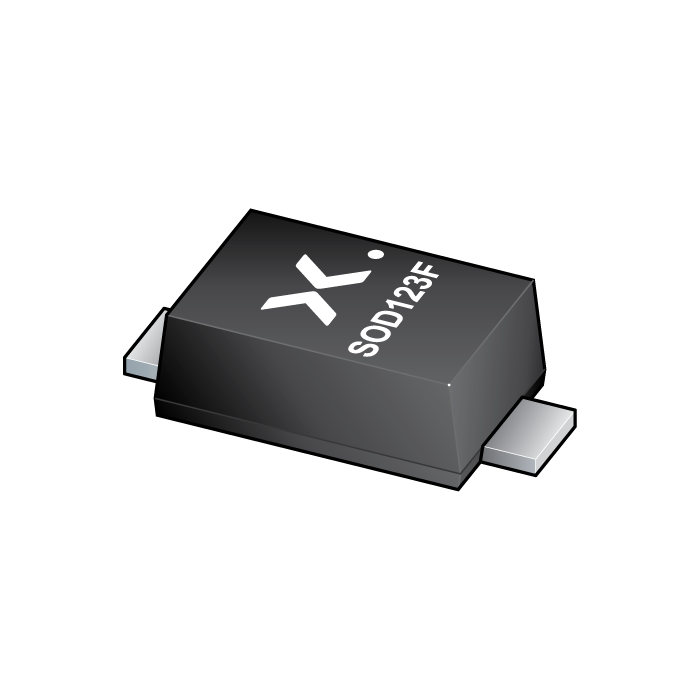

main product photo

The image is for reference only

Please refer to the product specifications

PMEG2020EH
  • SKU:
    PMEG2020EH-QX
  • Short Description:
      Q - 20 V, 2 A very low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small and flat lead SOD123F Surface Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.0616
Total: $0.0616
Price
Qty Price Total price
1 $0.0616 $0.0616
500 $0.056 $28.0000
1000 $0.0534 $53.4000
3000 $0.0508 $152.4000

Features

  • Forward current: 2 A

  • Reverse voltage: 20 V

  • Very low forward voltage

  • Small and flat lead SMD plastic package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Inverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
