PMEG2020EPK
The image is for reference only
Please refer to the product specifications
PMEG2020EPK
-
SKU:
PMEG2020EPK,315
-
Short Description:
20 V, 2 A low VF Schottky barrier rectifier
-
Description:

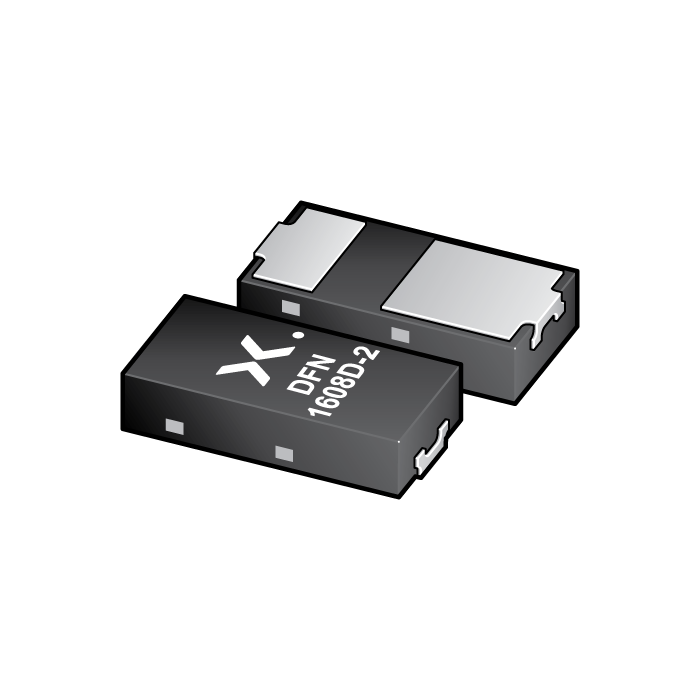

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
- Datasheet:
Stock: 2840000
Features
Average forward current: IF(AV) ≤ 2 A
Reverse voltage: VR ≤ 20 V
Low forward voltage VF ≤ 450 mV
Low reverse current
Solderable side pads
Package height typ. 0.37 mm
Ultra small and leadless SMD plastic package
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
LED backlight for mobile application
Low power consumption applications
Ultra high-speed switching
Reverse polarity protection
