PMEG3005EGW

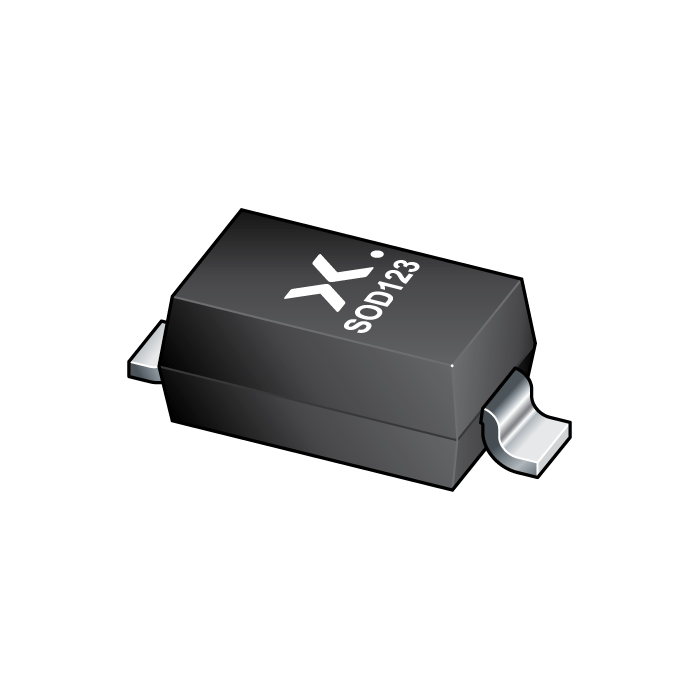

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3005EGW

SKU:
PMEG3005EGWJ
Date Code:
2352+
Short Description:
30 V, 0.5 A low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 650000

Qty:

Price: $0.0265

Total: $0.0265

Price

Qty Price Total price: 1 $0.0265 $0.0265; 500 $0.0241 $12.0500; 1000 $0.0229 $22.9000; 3000 $0.0219 $65.7000

Features

Forward current: I_F ≤ 0.5 A
Reverse voltage: V_R ≤ 30 V
Low forward voltage typ. V_F = 380 mV
Low reverse current typ. I_R = 40 µA
Small SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
