PMEG3005ELS

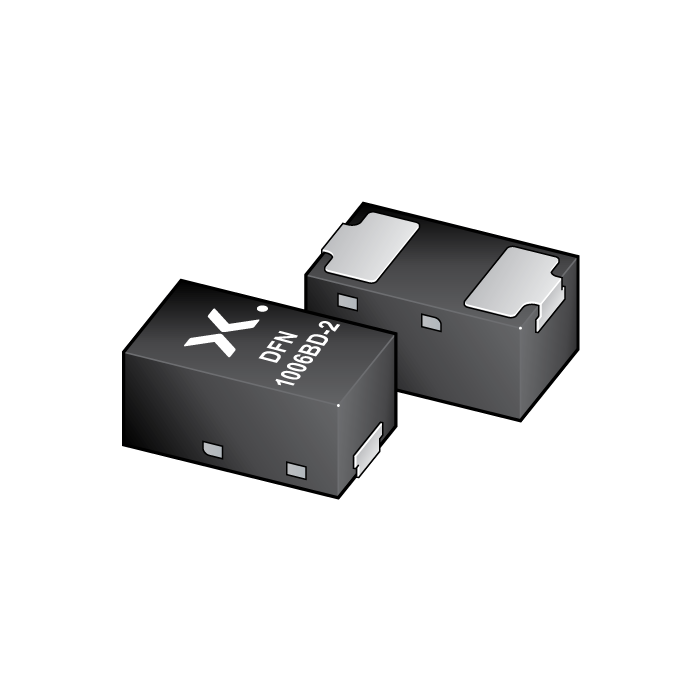

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3005ELS
  • SKU:
    PMEG3005ELSYL
  • Short Description:
      30 V, 0.5 A very low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in an ultra small SOD882BD (DFN1006BD-2) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 60000
Qty:
Price: $0.0367
Total: $0.0367
Price
Qty Price Total price
1 $0.0367 $0.0367
500 $0.0333 $16.6500
1000 $0.0318 $31.8000
3000 $0.0302 $90.6000

Features

  • Forward current: IF ≤ 0.5 A

  • Reverse voltage: VR ≤ 30 V

  • Ultra small SMD plastic package

  • Very low forward voltage

  • Suitable for Automatic Optical Inspection (AOI) of solder joint

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
