PMEG3020EJ

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

PMEG3020EJ

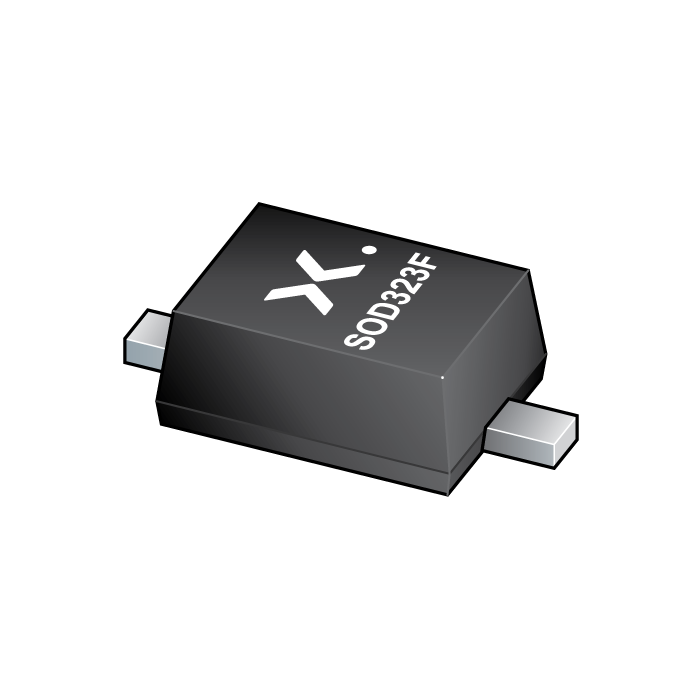

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3020EJ

SKU:
PMEG3010CEJ,115
Date Code:
2349+
Short Description:
30 V, 1 A very low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 1110000

Qty:

Price: $0.0427

Total: $0.0427

Price

Qty Price Total price: 1 $0.0427 $0.0427; 500 $0.0388 $19.4000; 1000 $0.0369 $36.9000; 3000 $0.0352 $105.6000

Features

Forward current: : I_F ≤ 1 A
Reverse voltage: V_R ≤ 30 V
Very low forward voltage
Small and flat lead SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
