PMEG3020EJ

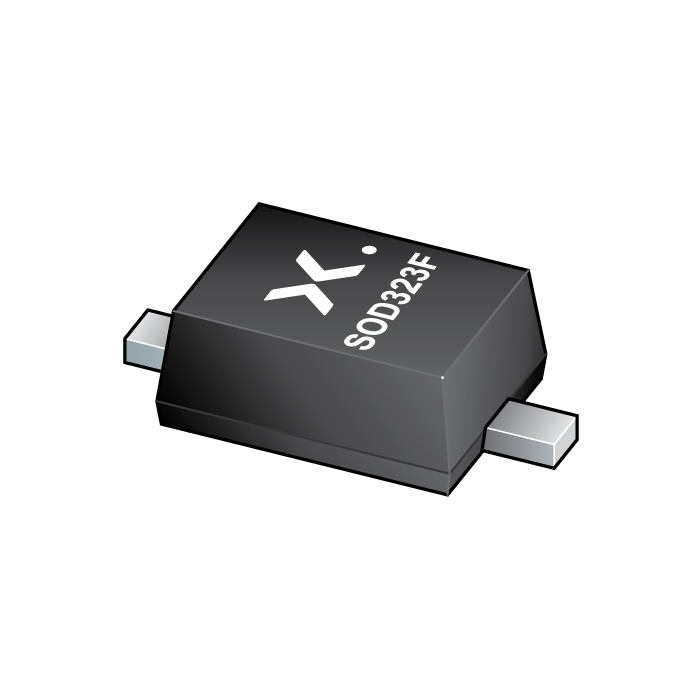

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3020EJ
  • SKU:
    PMEG3010CEJ-QX
  • Short Description:
      30 V, 1 A very low VF Schottky barrier rectifier
  • Description:


    Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F (SC-90) Surface-Mounted Device (SMD) plastic package.

  • Datasheet:
    Download the Datasheet
Stock: 57000
Qty:
Price: $0.0444
Total: $0.0444
Price
Qty Price Total price
1 $0.0444 $0.0444
500 $0.0403 $20.1500
1000 $0.0384 $38.4000
3000 $0.0366 $109.8000

Features

  • Forward current: : IF ≤ 1 A

  • Reverse voltage: VR ≤ 30 V

  • Very low forward voltage

  • Small and flat lead SMD plastic package

  • Qualified according to AEC-Q101 and recommended for use in automotive applications

Applications

  • Low voltage rectification

  • High efficiency DC-to-DC conversion

  • Switch mode power supply

  • Reverse polarity protection

  • Low power consumption applications

Datasheet
Download the Datasheet
