PMEG3010EGW

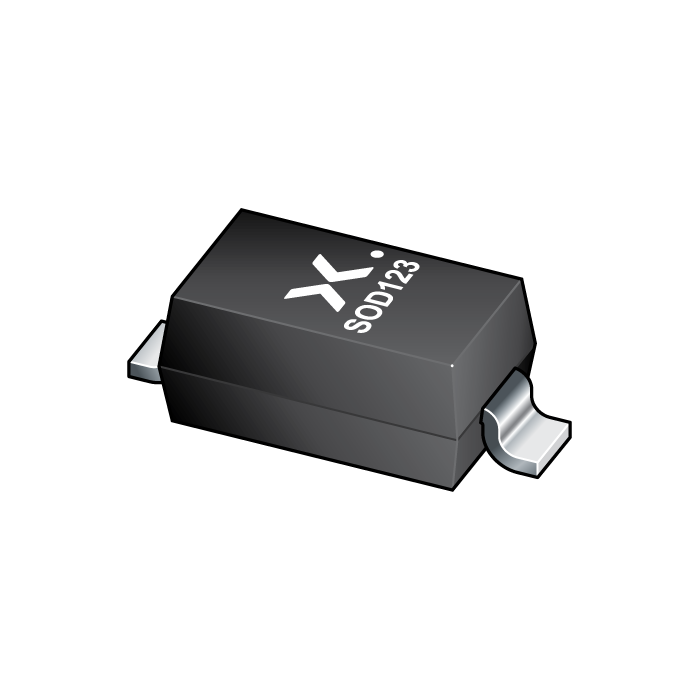

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3010EGW

SKU:
PMEG3010EGWJ
Date Code:
2342+
Short Description:
30 V, 1 A low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD123 Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.0272

Total: $0.0272

Price

Qty Price Total price: 1 $0.0272 $0.0272; 500 $0.0247 $12.3500; 1000 $0.0235 $23.5000; 3000 $0.0224 $67.2000

Features

Forward current: I_F ≤ 1 A
Reverse voltage: V_R ≤ 30 V
Low forward voltage typ. V_F = 450 mV
Low reverse current typ. I_R = 40 µA
Small SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
