PMEG3010EGW

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

PMEG3010EGW

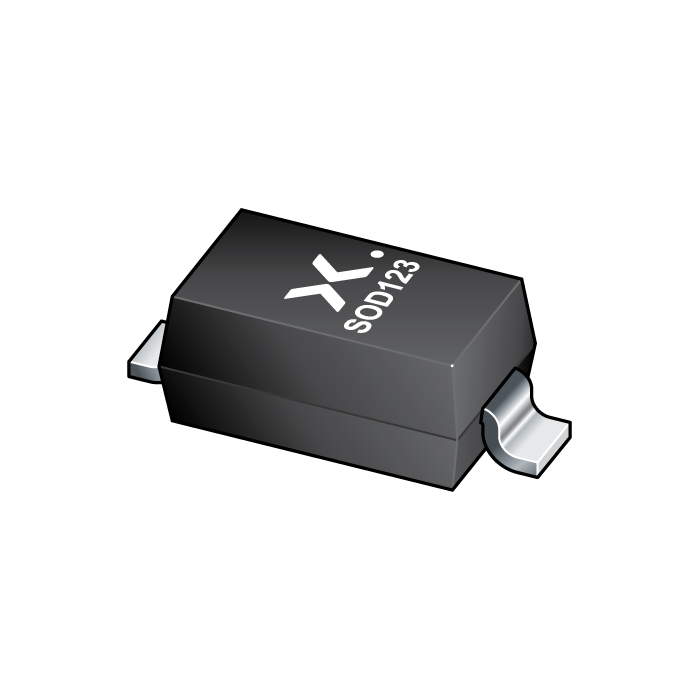

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3010EGW

SKU:
PMEG3010EGWX
Short Description:
30 V, 1 A low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in a small SOD123 Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 1392000

Qty:

Price: $0.0272

Total: $0.0272

Price

Qty Price Total price: 1 $0.0272 $0.0272; 500 $0.0247 $12.3500; 1000 $0.0235 $23.5000; 3000 $0.0224 $67.2000

Features

Forward current: I_F ≤ 1 A
Reverse voltage: V_R ≤ 30 V
Low forward voltage typ. V_F = 450 mV
Low reverse current typ. I_R = 40 µA
Small SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
