PMEG3020EGW

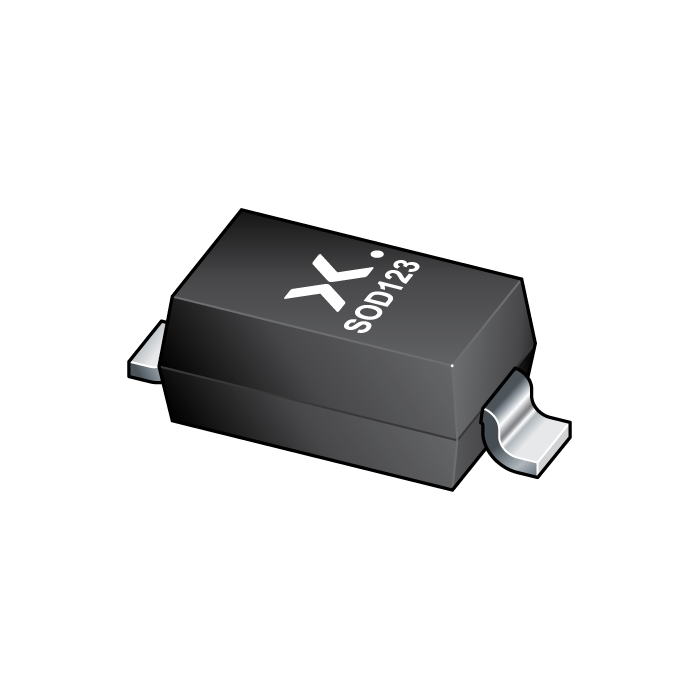

The image is for reference only
Please refer to the product specifications
PMEG3020EGW
-
SKU:
PMEG3020EGW-QX
-
Short Description:
Q - 30 V, 2 A low VF Schottky barrier rectifier
-
Description:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.
- Datasheet:
Stock: 75000
Features
Forward current: IF ≤ 2 A
Reverse voltage: VR ≤ 30 V
Low forward voltage typ. VF = 510 mV
Low reverse current typ. IR = 400 µA
Small SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Automotive applications
Datasheet
