PMEG3020EGW

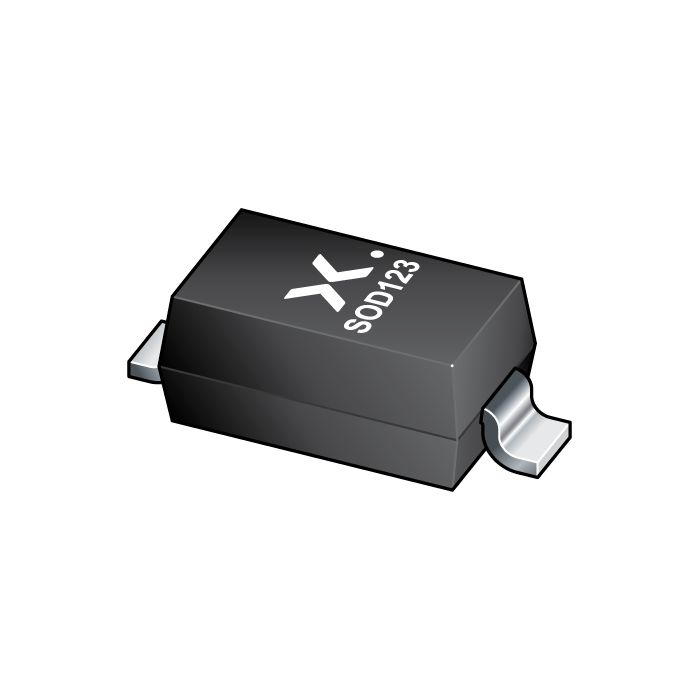

main product photo

The image is for reference only

Please refer to the product specifications

PMEG3020EGW

SKU:
PMEG3020EGWX
Short Description:
30 V, 2 A low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 12000

Qty:

Price: $0.0452

Total: $0.0452

Price

Qty Price Total price: 1 $0.0452 $0.0452; 500 $0.0411 $20.5500; 1000 $0.0391 $39.1000; 3000 $0.0373 $111.9000

Features

Forward current: I_F ≤ 2 A
Reverse voltage: V_R ≤ 30 V
Low forward voltage typ. V_F = 510 mV
Low reverse current typ. I_R = 400 µA
Small SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
