40 V, 0.5 A low VF MEGA Schottky barrier rectifier@en

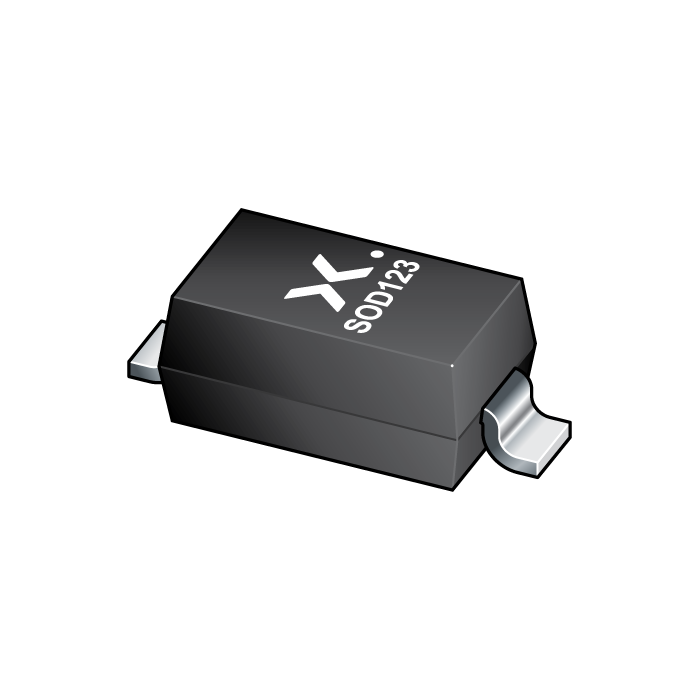

The image is for reference only
Please refer to the product specifications
40 V, 0.5 A low VF MEGA Schottky barrier rectifier@en
-
SKU:
PMEG4005EGWJ
-
Date Code:
2352+
-
Short Description:
us
-
Description:
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.
- Datasheet:
Stock: 560000
Features
Forward current: IF ≤ 0.5 A
Reverse voltage: VR ≤ 40 V
Low forward voltage typ. VF = 420 mV
Low reverse current typ. IR = 30 µA
Small SMD plastic package
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Datasheet
