PMEG4010CEGW
The image is for reference only
Please refer to the product specifications
PMEG4010CEGW
-
SKU:
PMEG4010CEGW-QX
-
Short Description:
Q - 40 V, 1 A low VF Schottky barrier rectifier
-
Description:

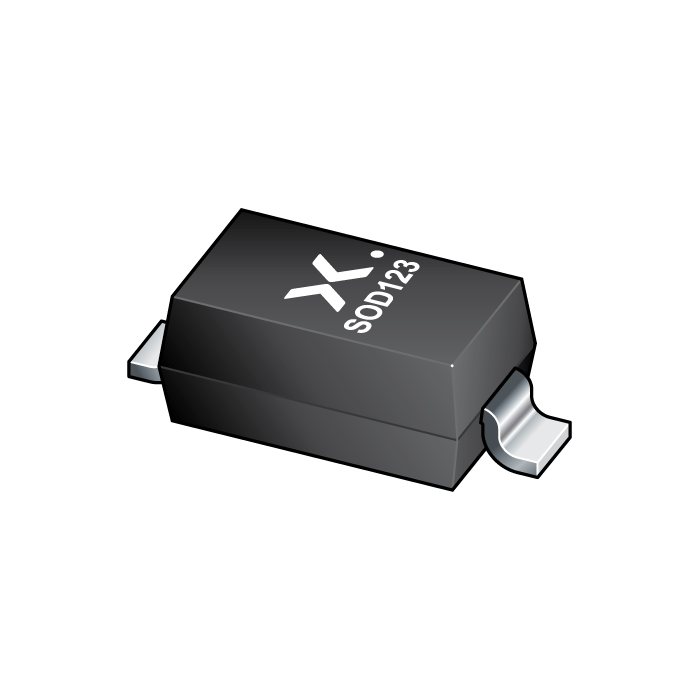

Planar Schottky barrier diode rectifier with an integrated guard ring for stress protection, encapsulated in an SOD123 small Surface-Mounted Device (SMD) plastic package.
- Datasheet:
Stock: 117000
Features
Forward current: IF ≤ 1 A
Reverse voltage: VR ≤ 40 V
Low forward voltage typ. VF = 490 mV
Low reverse current typ. IR = 6 µA
Small SMD plastic package
Qualified according to AEC-Q101 and recommended for use in automotive applications
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Automotive applications
Datasheet
