PMEG4010CEGW

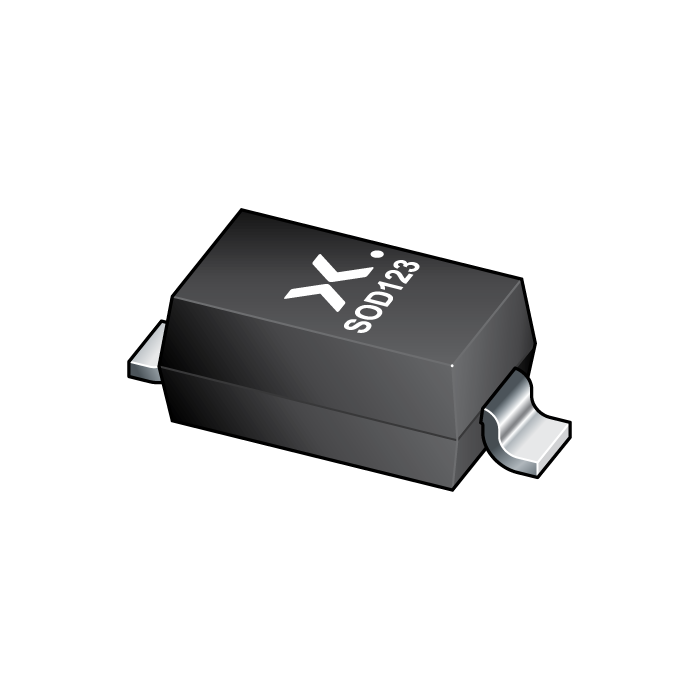

main product photo

The image is for reference only

Please refer to the product specifications

PMEG4010CEGW

SKU:
PMEG4010CEGWX
Short Description:
40 V, 1 A low VF Schottky barrier rectifier
Description:

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a small SOD123 Surface-Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 162000

Qty:

Price: $0.0343

Total: $0.0343

Price

Qty Price Total price: 1 $0.0343 $0.0343; 500 $0.0312 $15.6000; 1000 $0.0297 $29.7000; 3000 $0.0283 $84.9000

Features

Forward current: I_F ≤ 1 A
Reverse voltage: V_R ≤ 40 V
Low forward voltage typ. V_F = 490 mV
Low reverse current typ. I_R = 6 µA
Small SMD plastic package

Applications

Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications

Datasheet

Download the Datasheet
