PMEG4010EPK

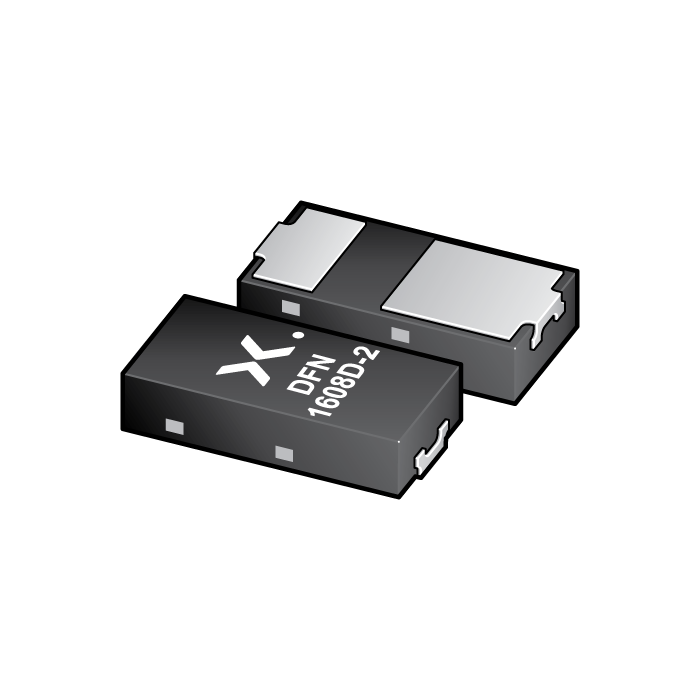

The image is for reference only
Please refer to the product specifications
PMEG4010EPK
-
SKU:
PMEG4010EPK,315
-
Date Code:
2352+
-
Short Description:
40 V, 1 A low VF Schottky barrier rectifier
-
Description:
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small SOD1608 (DFN1608D-2) Surface-Mounted Device (SMD) plastic package with visible and solderable sidepads.
- Datasheet:
Stock: 3040000
Features
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 40 V
Low forward voltage VF ≤ 600 mV
Low reverse current
Solderable side pads
Package height typ. 0.37 mm
Ultra small and leadless SMD plastic package
AEC-Q101 qualified
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
LED backlight for mobile application
Low power consumption applications
Ultra high-speed switching
Reverse polarity protection
