PMEG6010ESB
The image is for reference only
Please refer to the product specifications
PMEG6010ESB
-
SKU:
PMEG6010ESBYL
-
Short Description:
60 V, 1 A low VF MEGA Schottky barrier rectifier
-
Description:

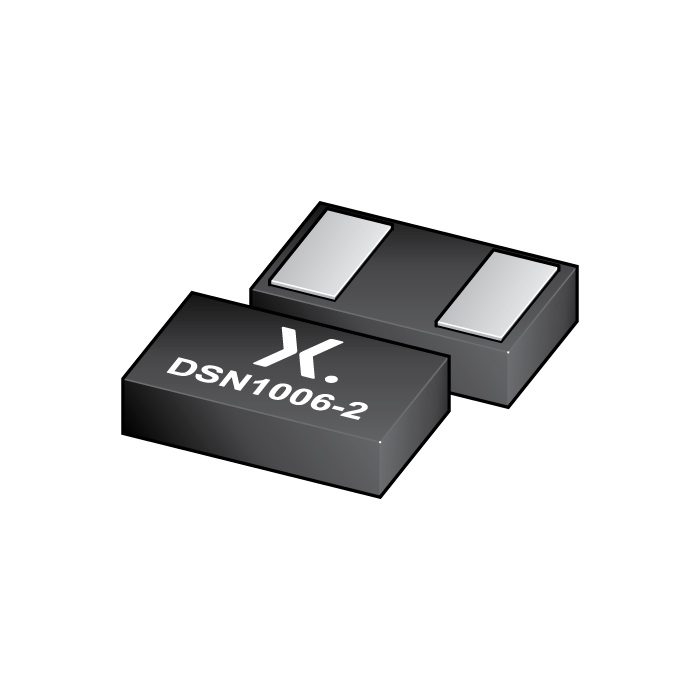

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection in a leadless ultra small DSN1006-2 (SOD993) Surface-Mounted Device (SMD) package.
- Datasheet:
Stock: 99879999
Features
Average forward current: IF(AV) ≤ 1 A
Reverse voltage: VR ≤ 60 V
Low forward voltage, typical: VF = 625 mV
Low reverse current, typical: IR = 9 µA
Package height typ. 270 µm
Applications
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Low power consumption applications
Ultra high-speed switching
LED backlight for mobile application
