PMH550UPE

SKU:
PMH550UPEH
Short Description:
20 V, P-channel Trench MOSFET
Description:

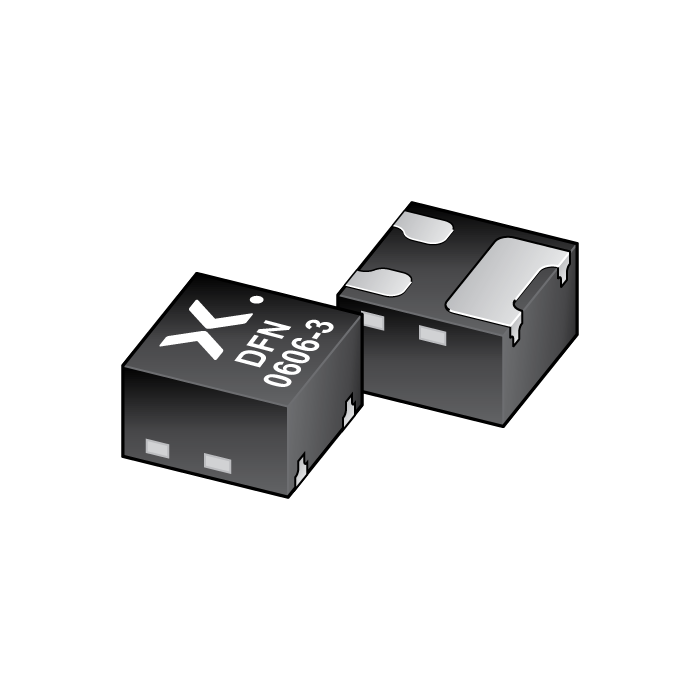

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN0606-3 (SOT8001) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 90000

Qty:

Price: $0.0388

Total: $0.0388

Price

Qty Price Total price: 1 $0.0388 $0.0388; 500 $0.0352 $17.6000; 1000 $0.0336 $33.6000; 3000 $0.032 $96.0000

Features

Low threshold voltage
Very fast switching
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection up to 1.8 kV HBM
Leadless ultra small and ultra thin SMD plastic package: 0.62 × 0.62 × 0.37 mm

Applications

Relay driver
High-speed line driver
High-side load switch
Switching circuits

Datasheet

Download the Datasheet
