PMPB23XNE

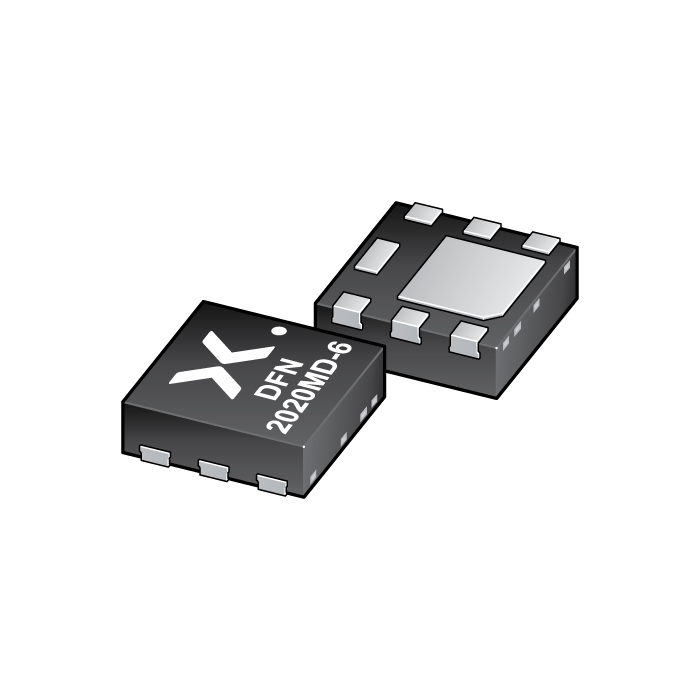

main product photo

The image is for reference only

Please refer to the product specifications

PMPB23XNE
  • SKU:
    PMPB23XNE,115
  • Short Description:
      20 V, single N-channel Trench MOSFET
  • Description:


    N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

  • Datasheet:
    Download the Datasheet
Stock: 45000
Qty:
Price: $0.1006
Total: $0.1006
Price
Qty Price Total price
1 $0.1006 $0.1006
500 $0.0914 $45.7000
1000 $0.0871 $87.1000
3000 $0.0829 $248.7000

Features

  • 1 kV ESD protection

  • Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm

  • Exposed drain pad for excellent thermal conduction

  • Tin-plated, 100% solderable side pads for optical solder inspection

Applications

  • Charging switch for portable devices

  • DC-to-DC converters

  • Power management in battery-driven portables

  • Hard disk and computing power management

Datasheet
Download the Datasheet
