PMZ1000UN

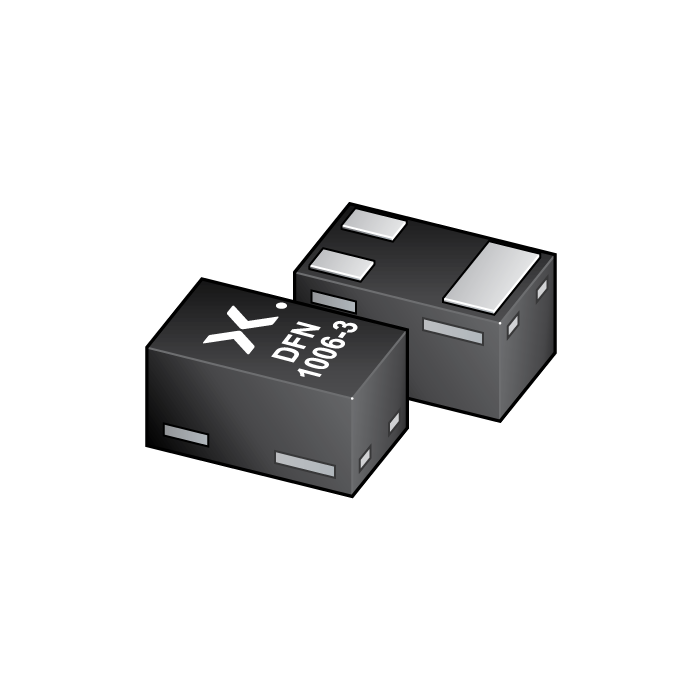

main product photo

The image is for reference only

Please refer to the product specifications

PMZ1000UN
  • SKU:
    PMZ1000UN,315
  • Short Description:
      N-channel TrenchMOS standard level FET
  • Description:


    Standard level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology. This product is designed and qualified for use in computing, communications, consumer and industrial applications only.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.0466
Total: $0.0466
Price
Qty Price Total price
1 $0.0466 $0.0466
500 $0.0423 $21.1500
1000 $0.0403 $40.3000
3000 $0.0384 $115.2000

Features

  • Fast switching

  • Low conduction losses due to low on-state resistance

  • Saves PCB space due to small footprint (90 % smaller than SOT23)

  • Suitable for use in compact designs due to low profile (55 % lower than SOT23)

Applications

  • Driver circuits

  • Switching in portable appliances

Datasheet
Download the Datasheet
