PMZB950UPEL

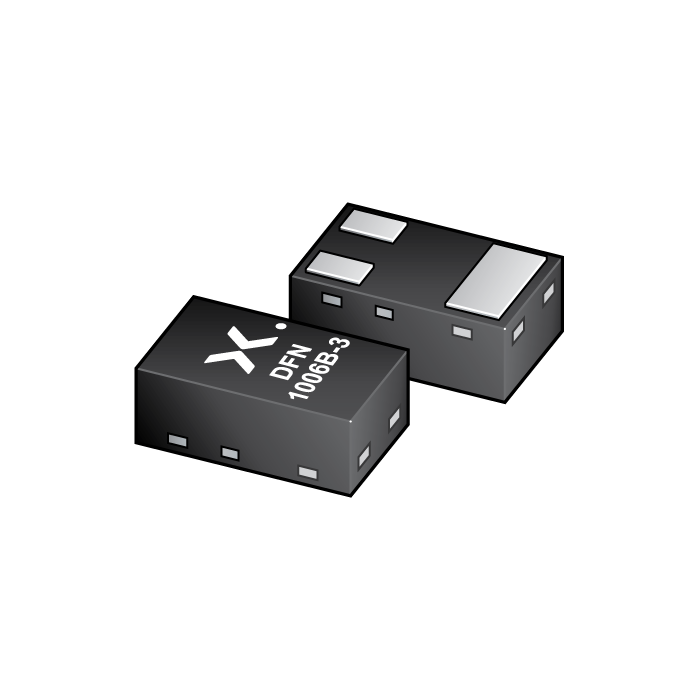

main product photo

The image is for reference only

Please refer to the product specifications

PMZB950UPEL

SKU:
PMZB950UPELYL
Date Code:
2325+
Short Description:
20 V, P-channel Trench MOSFET
Description:

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.0598

Total: $0.0598

Price

Qty Price Total price: 1 $0.0598 $0.0598; 500 $0.0544 $27.2000; 1000 $0.0518 $51.8000; 3000 $0.0493 $147.9000

Features

Low leakage current
Trench MOSFET technology
Leadless ultra small and ultra thin SMD plastic package: 1.0 × 0.6 × 0.37 mm
ElectroStatic Discharge (ESD) protection > 1 kV HBM
Drain-source on-state resistance R_DSon = 1.02 Ω

Applications

Relay driver
High-speed line driver
High-side load switch
Switching circuits

Datasheet

Download the Datasheet
