PQMD3

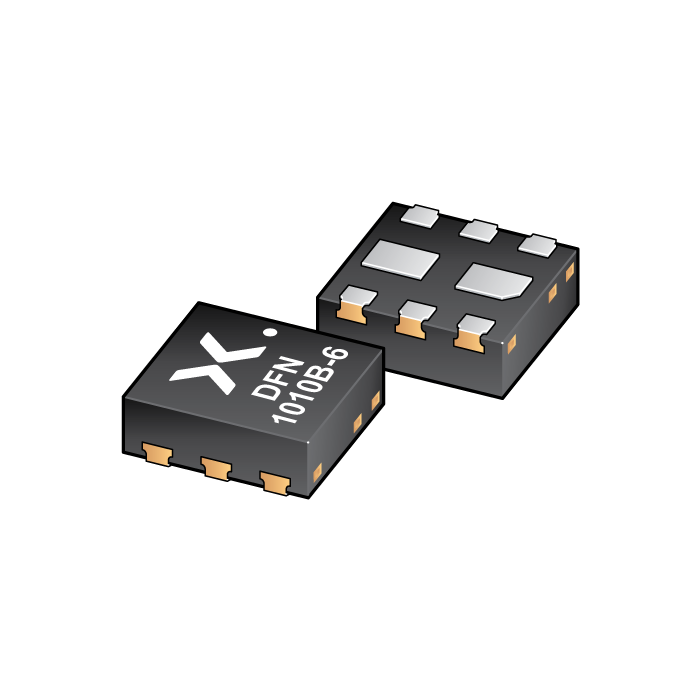

The image is for reference only
Please refer to the product specifications
PQMD3
-
SKU:
PQMD3Z
-
Date Code:
2341+
-
Short Description:
NPN/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ
-
Description:
NPN/PNP double Resistor-Equipped Transistors (RET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic package.
NPN/NPN complement: PQMH11
PNP/PNP complement: PQMB11
- Datasheet:
Stock: 10000
Features
100 mA output current capability
Built-in bias resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
AEC-Q101 qualified
Applications
Low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
Mobile applications
