PQMH10

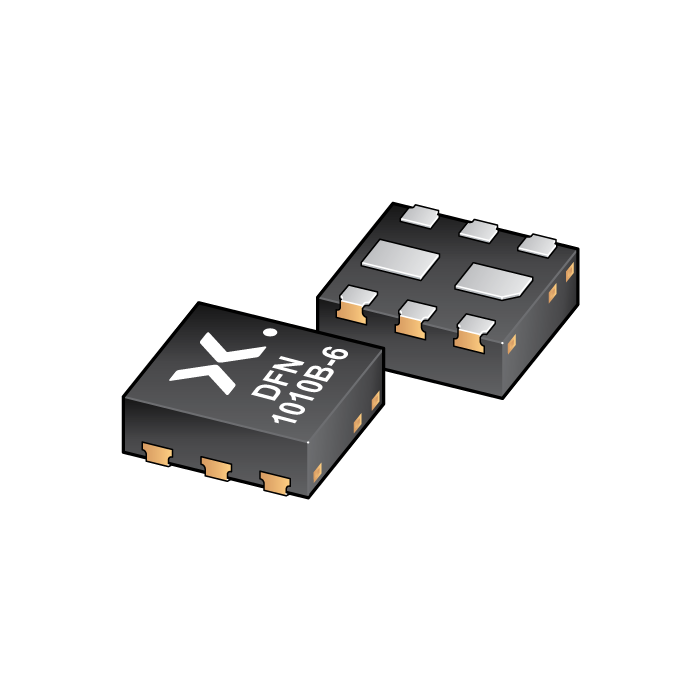

main product photo

The image is for reference only

Please refer to the product specifications

PQMH10

SKU:
PQMH10Z
Date Code:
2352+
Short Description:
NPN/NPN resistor-equipped transistors; R1 = 2.2 kΩ, R2 = 47 kΩ
Description:

NPN/NPN Resistor-Equipped Transistors (RET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic package.
NPN/PNP complement: PQMD10.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 5000

Qty:

Price: $0.04

Total: $0.04

Price

Qty Price Total price: 1 $0.04 $0.04; 500 $0.0364 $18.2000; 1000 $0.0347 $34.7000; 3000 $0.033 $99.0000

Features

100 mA output current capability
Built-in bias resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
AEC-Q101 qualified

Applications

Low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
Mobile applications

Datasheet

Download the Datasheet
