PQMH11

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

PQMH11

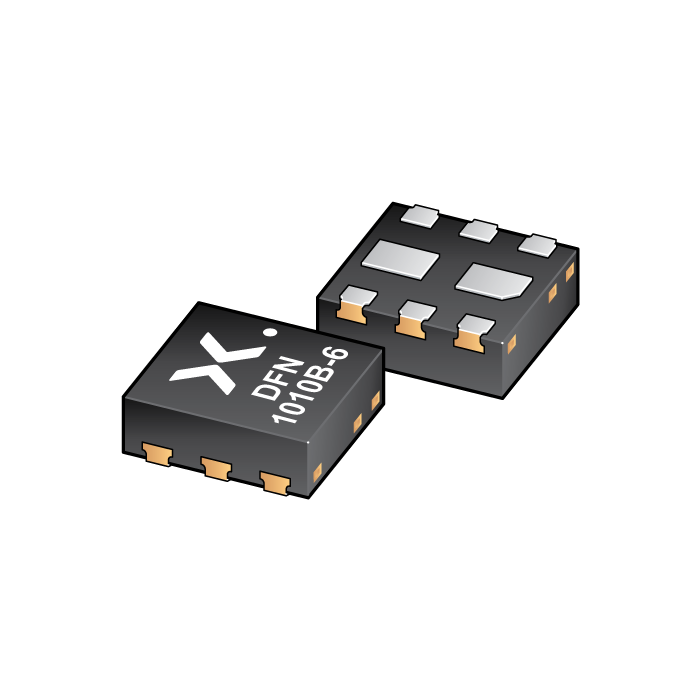

main product photo

The image is for reference only

Please refer to the product specifications

PQMH11

SKU:
PQMH11Z
Date Code:
2333+
Short Description:
NPN/NPN resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ
Description:

NPN/NPN Resistor-Equipped Transistors (RET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic package.
PNP/PNP complement: PQMB11.
NPN/PNP complement: PQMD3.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.04

Total: $0.04

Price

Qty Price Total price: 1 $0.04 $0.04; 500 $0.0364 $18.2000; 1000 $0.0347 $34.7000; 3000 $0.033 $99.0000

Features

100 mA output current capability
Built-in bias resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
AEC-Q101 qualified

Applications

Low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
Mobile applications

Datasheet

Download the Datasheet
