PTVS10VZ1USK

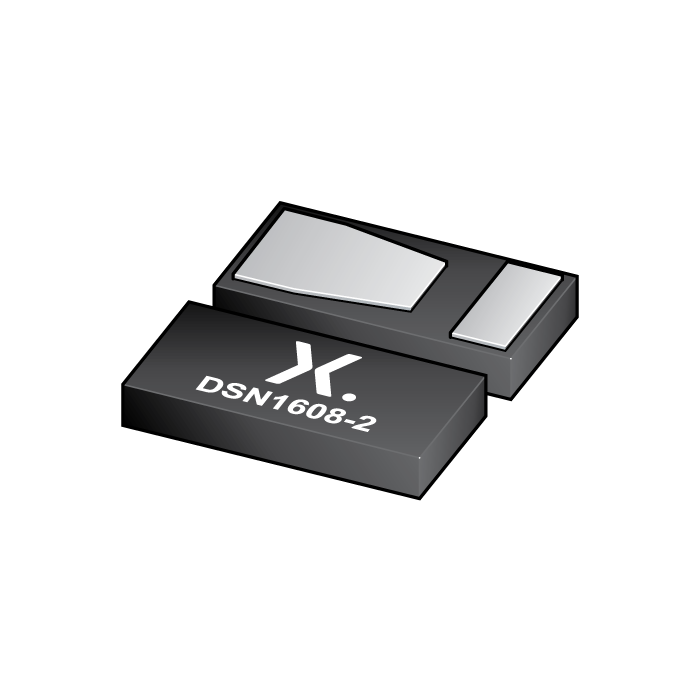

main product photo

The image is for reference only

Please refer to the product specifications

PTVS10VZ1USK
  • SKU:
    PTVS10VZ1USKYL
  • Short Description:
      Transient voltage suppressor in DSN1608-2 for mobile applications
  • Description:


    Unidirectional Transient Voltage Suppressor (TVS) in a very small leadless DSN1608-2 (SOD964) package.

  • Datasheet:
    Download the Datasheet
Stock: 99999999
Qty:
Price: $0.0586
Total: $0.0586
Price
Qty Price Total price
1 $0.0586 $0.0586
500 $0.0533 $26.6500
1000 $0.0507 $50.7000
3000 $0.0483 $144.9000

Features

  • Rated peak pulse current: IPPM = 75 A (8/20 µs pulse)

  • Rated peak pulse power: PPPM = 2000 W (8/20 µs pulse)

  • Dynamic resistance Rdyn = 0.11 Ω

  • Reverse current: IRM = 0.1 nA typ.

  • Very low package height: 0.29 mm

Applications

  • Power supply protection

  • Industrial application

  • Power management

Datasheet
Download the Datasheet
