PTVS12VZ1USK

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

PTVS12VZ1USK

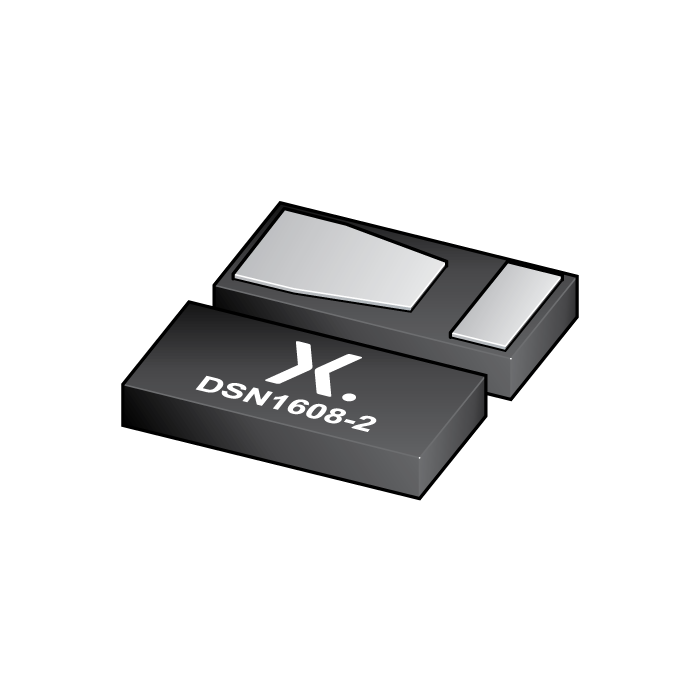

main product photo

The image is for reference only

Please refer to the product specifications

PTVS12VZ1USK

SKU:
PTVS12VZ1USKYL
Date Code:
2349+
Short Description:
Transient voltage suppressor in DSN1608-2 for mobile applications
Description:

Unidirectional Transient Voltage Suppressor (TVS) in a very small leadless DSN1608-2 (SOD964) package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 99999999

Qty:

Price: $0.0586

Total: $0.0586

Price

Qty Price Total price: 1 $0.0586 $0.0586; 500 $0.0533 $26.6500; 1000 $0.0507 $50.7000; 3000 $0.0483 $144.9000

Features

Rated peak pulse current: I_PPM = 65 A (8/20 µs pulse)
Rated peak pulse power: P_PPM = 1900 W (8/20 µs pulse)
Dynamic resistance R_dyn = 0.11 Ω
Reverse current: I_RM = 0.1 nA
Very low package height: 0.29 mm

Applications

Power supply protection
Industrial application
Power management

Datasheet

Download the Datasheet
