PTVS22VZ1USK

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

BOM New Arrivals Specials Automotive

Skip to the end of the images gallery

PTVS22VZ1USK

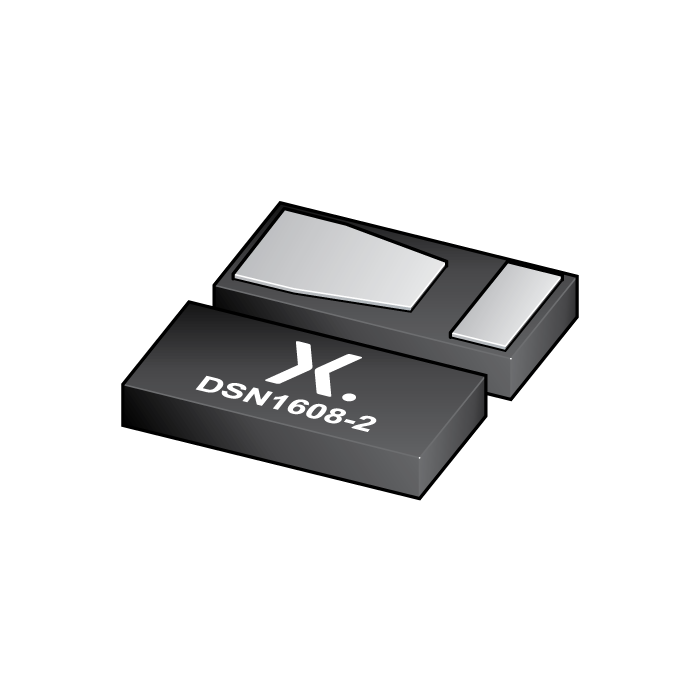

main product photo

The image is for reference only

Please refer to the product specifications

PTVS22VZ1USK

SKU:
PTVS22VZ1USKYL
Date Code:
2349+
Short Description:
Transient voltage suppressor in DSN1608-2 for mobile applications
Description:

Unidirectional Transient Voltage Suppressor (TVS) in a very small leadless DSN1608-2 (SOD964) package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 370000

Qty:

Price: $0.0586

Total: $0.0586

Price

Qty Price Total price: 1 $0.0586 $0.0586; 500 $0.0533 $26.6500; 1000 $0.0507 $50.7000; 3000 $0.0483 $144.9000

Features

Average measured peak pulse current: I_PPM = 43.5 A (8/20 μs pulse)
Rated peak pulse current: I_PPM = 37 A (8/20 μs pulse)
Rated peak pulse power: P_PPM = 200 W (10/1000 μs pulse)
Dynamic resistance R_dyn = 0.17 Ω
Very low package height: 0.29 mm

Applications

Power supply protection
Power management
Industrial application

Datasheet

Download the Datasheet
