PTVS3V3Z1BSC

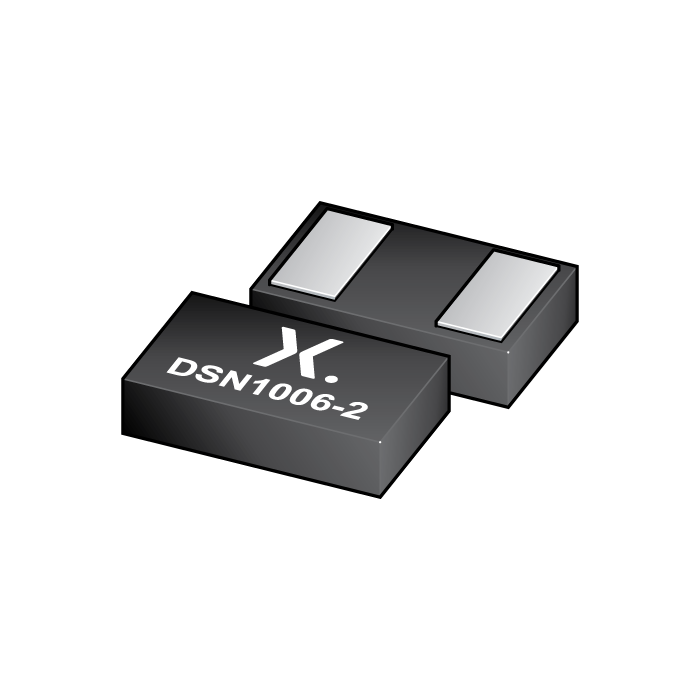

The image is for reference only
Please refer to the product specifications
PTVS3V3Z1BSC
-
SKU:
PTVS3V3Z1BSCYL
-
Short Description:
Ultra compact transient voltage suppressor
-
Description:
Transient voltage suppressor in an ultra small and leadless DSN1006-2 (SOD993B) Surface-Mounted Device (SMD) package designed to protect one line against high surge currents and other transients.
- Datasheet:
Stock: 630000
Features
Bidirectional ESD protection of one line
Very high surge robustness; IPPM = 82 A (measured) for 8/20 μs pulse
Very low clamping voltage: VCL = 11 V typ. for 70 A at 8/20μs pulse
ESD protection up to 30 kV
Applications
Surge protection for
supply and battery lines
audio interfaces
in portable communication, consumer and computing devices.
