PTVS5V0Z1BSC

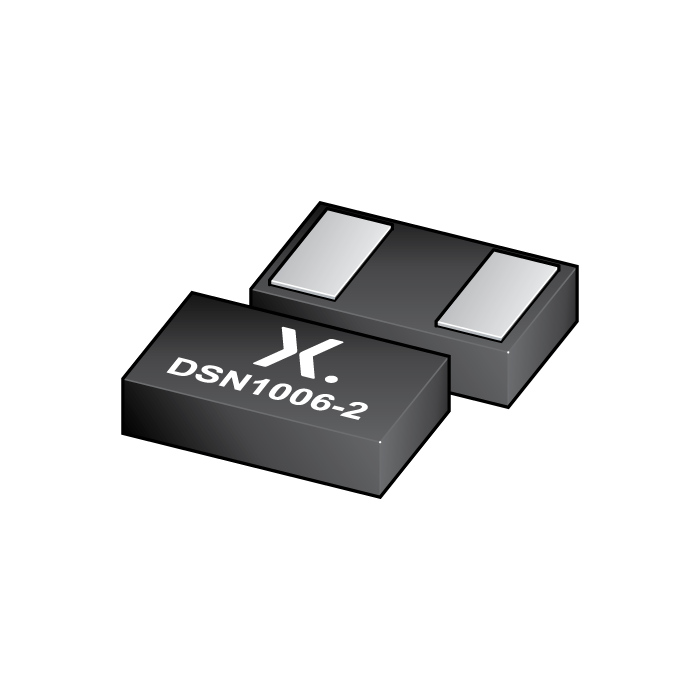

The image is for reference only
Please refer to the product specifications
PTVS5V0Z1BSC
-
SKU:
PTVS5V0Z1BSCYL
-
Short Description:
Ultra compact transient voltage suppressor
-
Description:
Transient voltage suppressor in an ultra small and leadless DSN1006-2 (SOD993B) Surface-Mounted Device (SMD) package designed to protect one line against high surge currents and other transients.
- Datasheet:
Stock: 2080000
Features
Bidirectional ESD protection of one line
Very high surge robustness; IPPM = 71 A (measured) for 8/20 μs pulse
Very low clamping voltage: VCL = 12 V typ. for 60 A at 8/20μs pulse
ESD protection up to 30 kV
Applications
Surge protection for
supply and battery lines
audio interfaces
in portable communication, consumer and computing devices.
