PTVS5V0Z1USKP

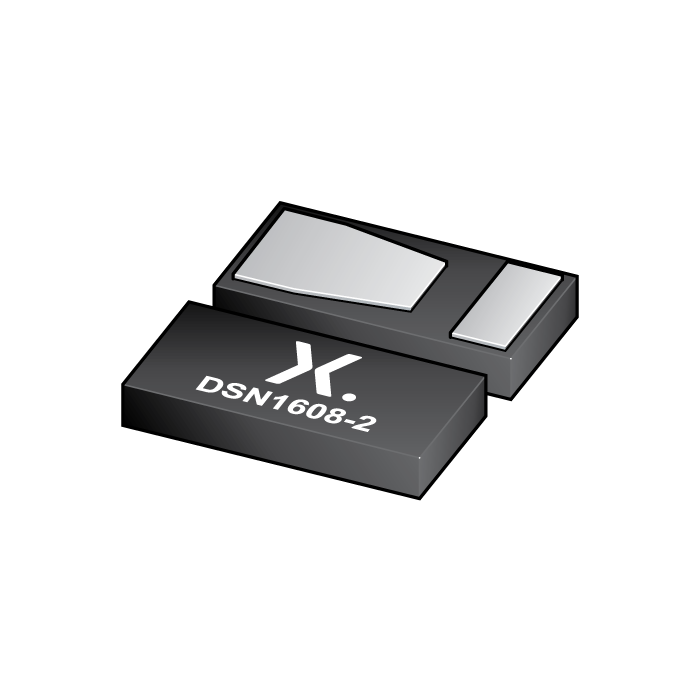

main product photo

The image is for reference only

Please refer to the product specifications

PTVS5V0Z1USKP
  • SKU:
    PTVS5V0Z1USKPYL
  • Date Code:
    2349+
  • Short Description:
      Transient voltage suppressor in DSN1608-2 for mobile applications
  • Description:


    Unidirectional Transient Voltage Suppressor (TVS) in an ultra small leadless DSN1608-2 (SOD964) package, designed for transient overvoltage protection.

  • Datasheet:
    Download the Datasheet
Stock: 50000
Qty:
Price: $0.0586
Total: $0.0586
Price
Qty Price Total price
1 $0.0586 $0.0586
500 $0.0533 $26.6500
1000 $0.0507 $50.7000
3000 $0.0483 $144.9000

Features

  • Average measured peak pulse current: IPPM = 112.5 A (8/20 μs pulse)

  • Rated peak pulse current: IPPM = 100 A (8/20 μs pulse)

  • Rated peak pulse power: PPPM = 260 W (10/1000 µs pulse)

  • Dynamic resistance Rdyn = 0.08 Ω

  • Very low package height: 0.29 mm

Applications

  • Power supply protection

  • Power management

  • Industrial application

Datasheet
Download the Datasheet
