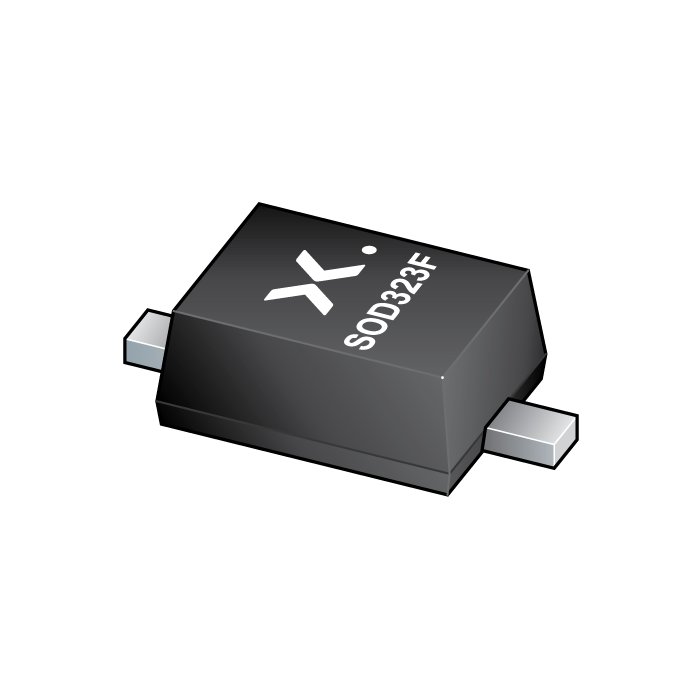

main product photo

The image is for reference only

Please refer to the product specifications

PZUxB series

SKU:
PZU20B2,115
Short Description:
Single Zener diodes in a SOD323F package
Description:

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Datasheet:
Download the Datasheet

Skip to the beginning of the images gallery

Stock: 3000

Qty:

Price: $0.024

Total: $0.024

Price

Qty Price Total price: 1 $0.024 $0.024; 500 $0.0218 $10.9000; 1000 $0.0208 $20.8000; 3000 $0.0198 $59.4000

Features

Total power dissipation: 550 mW
Tolerance series: B: approximately 5 %; B1, B2, B3: sequential, approximately 2 %
Small plastic package suitable for surface mounted design
Wide working voltage range: nominal 2.4 V to 36 V
Very low leakage current for a given reverse voltage for types PZU5.1B - PZU10B
AEC-Q101 qualified

Applications

General regulation functions

Datasheet

Download the Datasheet
