TL431 family

TL431 family

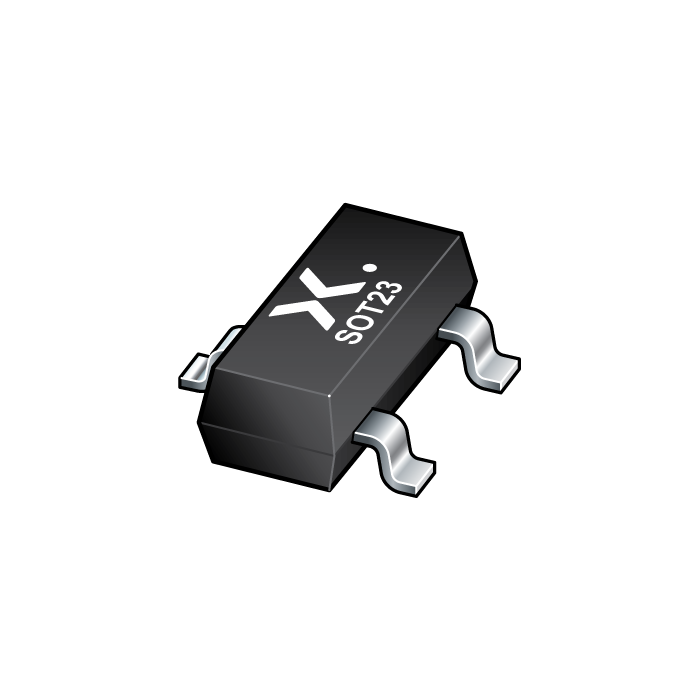

The image is for reference only

Please refer to the product specifications

TL431 family

Description:

Three-terminal shunt regulator family with an output voltage range between

V_ref = 2.495 V and 36 V, to be set by two external resistors.

Reference voltage tolerance (V_ref)	Temperature range (T_amb)			Pinning configuration
Reference voltage tolerance (V_ref)	0 ° C to 70 °C	-40 ° C to 85 °C	-40 ° C to 125 °C	Pinning configuration
2.0 %	TL431CDBZR	TL431IDBZR	TL431QDBZR	normal pinning
			TL431FDT	normal pinning
			TL431MFDT	mirrored pinning
1.0 %	TL431ACDBZR	TL431AIDBZR	TL431AQDBZR	normal pinning
			TL431AFDT	normal pinning
			TL431AMFDT	mirrored pinning
0.5 %	TL431BCDBZR	TL431BIDBZR	TL431BQDBZR	normal pinning
			TL431BFDT	normal pinning
			TL431BMFDT	mirrored pinning

Stock: 81000

Qty:

Price: $0.0632

Total: $0.0632

Price

Qty Price Total price: 1 $0.0632 $0.0632; 500 $0.0574 $28.7000; 1000 $0.0547 $54.7000; 3000 $0.0521 $156.3000

Programmable output voltage up to 36 V
Three different reference voltage tolerances:
- Standard grade: 2 %
- A-Grade: 1 %
- B-Grade: 0.5 %
Typical temperature drift: 9 mV (in a range of 0 °C up to 70 °C)
Low output noise
Typical output impedance: 0.2 Ω
Sink current capability: 1 mA to 100 mA
AEC-Q100 qualified (grade 1)
