TLVH431N

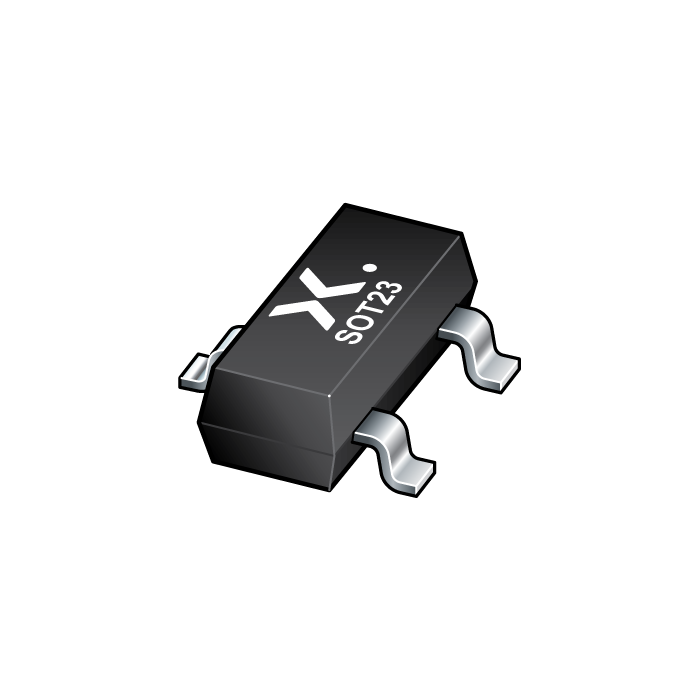

The image is for reference only

Please refer to the product specifications

TLVH431N

Description:

Three-terminal shunt regulator family with an output voltage range between V_ref = 1.24 V and 14 V, to be set by two external resistors.

Table 1. Product overview
Reference voltage tolerance (V_ref)	Package	Temperature range (T_amb)			Pinning configuration (see Table 5)
Reference voltage tolerance (V_ref)	Package	0 °C to 70 °C	-40 °C to 85 °C	-40 °C to 125 °C	Pinning configuration (see Table 5)
1.5 %	SOT23	TLVH431NCDBZR-Q	TLVH431NIDBZR-Q	TLVH431NQDBZR-Q	normal pinning
1.5 %		TLVH431NCDBZR-Q	TLVH431NIDBZR-Q	TLVH431NMQDBZR-Q	mirrored pinning
1.0 %		TLVH431NACDBZR-Q	TLVH431NAIDBZR-Q	TLVH431NAQDBZR-Q	normal pinning
1.0 %		TLVH431NACDBZR-Q	TLVH431NAIDBZR-Q	TLVH431NAMQDBZR-Q	mirrored pinning

Stock: 54000

Qty:

Price: $0.069

Total: $0.069

Price

Qty Price Total price: 1 $0.069 $0.069; 500 $0.0628 $31.4000; 1000 $0.0598 $59.8000; 3000 $0.0569 $170.7000

Programmable output voltage up to 14 V
Two different reference voltage tolerances:
- Standard grade: 1.5 %
- A-Grade: 1 %
Low output noise
Typical output impedance: 0.1 Ω
Sink current capability: 0.08 mA to 70 mA
Qualified according to AEC-Q100 (grade 1) and recommended for use in automotive applications
